Roller Track (GF-6B-42)

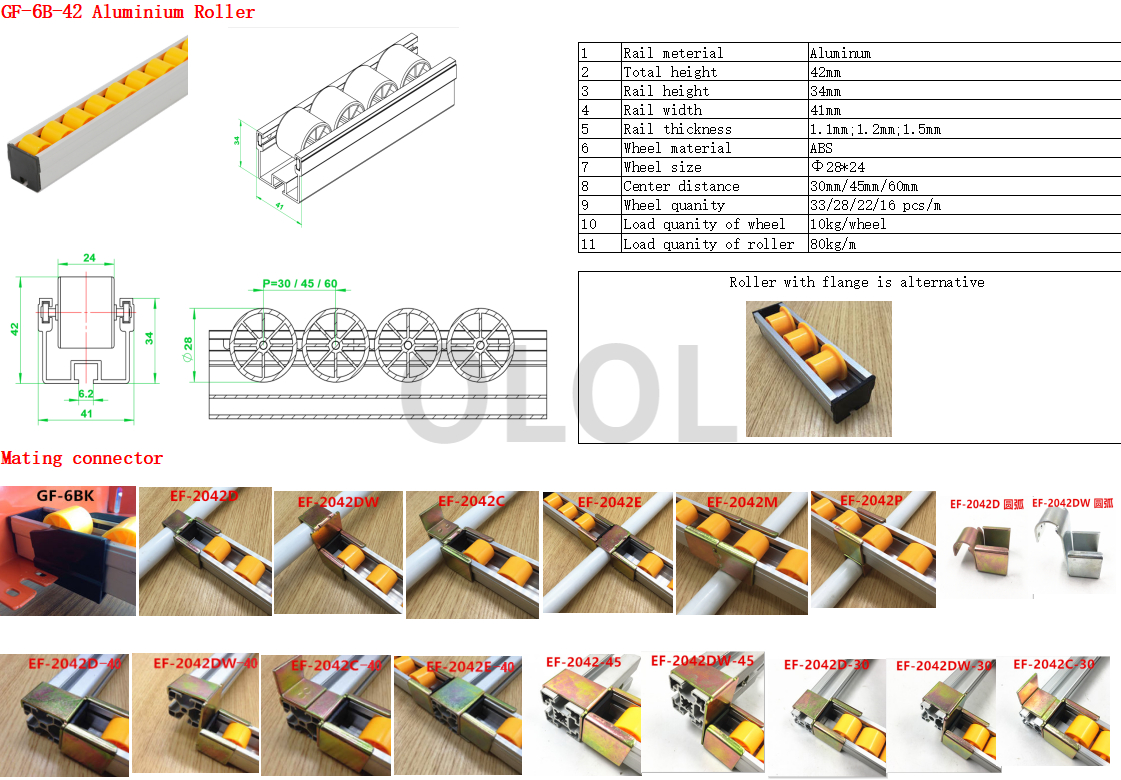

The size of GF-6B-42 wheel is 28*24,the width is 24 mm,diameter is 28 mm.it usually paired with brackets (such as EF-2042D,EF-2042DW,EF-2042C etc.)
Lean pipe, also known as composite pipe or flexible pipe, is a welded steel pipe with a plastic resin coating after surface treatment of high-quality steel pipes. The outer surface is made of PE/ABS/ESD plastic layer, and the inner surface is coated with a combination of anti-corrosion layer.
After forming the product, it has the characteristics of beautiful appearance, wear resistance, bright color, rust prevention, and no pollution, making it an ideal substitute for stainless steel products. The standard diameter of the wire rod material is 27.8 ± 0.2mm. The plastic layer on the pipe wall is made of PE/ABS/ESD plastic, and the steel pipe wall thickness is 0.7mm, 0.8mm, 1.0mm, 1.2mm, and 2.0mm. Additionally, lean pipes with thicknesses of 0.9 and 1.5mm can be customized.The commonly used colors for the appearance of lean pipes include beige, white, black, and ivory. Different effects can also be made according to different requirements.The normal temperature for the use of lean tubes is -10 ℃ to 50 ℃ (15 to 120 degrees Fahrenheit); It should be noted that when the temperature of the coated plastic pipe reaches 88 ℃ (190 degrees Fahrenheit), the ASA plastic resin layer will begin to deform.
Lean management uses the simplest industrial production concept that is easy to understand. Tools assembled with lean management do not need to consider too much precise data and structural rules, except for the explanation of load. Production line workers design and manufacture wire rod products based on their own workstation conditions.
|
Product Name: |
GF-6B-42 |
Plastic Type: |
PE,ABS,ESD |
|
Color: |
White,Yellow,Black |
Capacity: |
80kg/m |
|
Usage: |
Freight transportation |
Logo: |
As Your Design |
|
Industrial Use: |
Logistics, warehousing and transportation,rack system,worktable,pallet rack |
Origin: |
Suqain Jiangsu |
